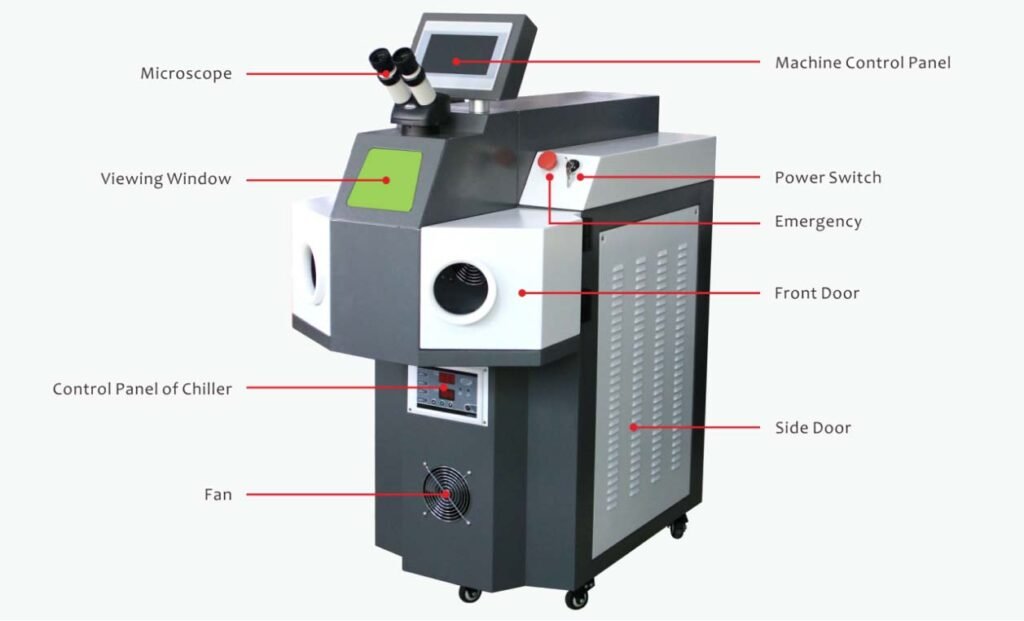

Jewelry Laser Spot Welding Machine

The laser spot welding machine is used for drilling sand holes and spot welding in gold and silver jewelry. Laser spot welding is an important application of laser material processing technology. Spot welding is a heat conduction process, where the laser irradiates the surface of the component, and the heat from the surface diffuses inward through conduction. By controlling parameters such as laser pulse width, energy, peak, and repetition frequency, the component will melt, forming a specific molten pool. Due to its unique advantages, this product has been successfully applied in the processing of gold and silver jewelry and the welding of small components.

Description:

Application

This laser spot welder is specifically designed for gold and silver jewelry, golf balls, electronic component hole repair, welding sand holes, and welding inlays. It offers strong, aesthetically pleasing, non-deforming welds, is easy to operate, and convenient to use.

Features

1. Energy, pulse width, frequency, and spot size can be adjusted over a wide range to achieve different welding effects. Parameter adjustments are made via a control rod inside a sealed chamber, making operation simple and efficient.

2. It uses an imported ceramic focusing cavity from the UK, which is corrosion-resistant, high-temperature resistant, and has a high photoelectric conversion efficiency. The focusing cavity has a lifespan of 8-10 years, while the xenon lamp lasts over 8 million flashes.

3. It employs a world-class automatic light-shielding system to eliminate eye strain from light exposure during operation.

4. Capable of continuous operation for 24 hours, it maintains stable performance and requires no maintenance for up to 10,000 hours.

5. Personalized design that conforms to ergonomic principles.

Parameter Table:

Item Value
Model MY-W200J
Max.average power 200W
Laser wavelength 1064nm
Max. Pulse energy 120J
Laser welding depth 0.1-3.3mm
The pulse width 0.3-20ms
Batter, laser welding frequency 0.5-20Hz
Adjustable range of spot size 0.2-2mm
Machine Power consumption ≤4kw
The demand for electricity 220V±0%/50Hz/30A
Cold system Water Chiller
Installation environment Installation Location: 3㎡or less
Environment Clean, no dust or less dust
Temperature 55℉(13℃) to 82℉(28℃)
Humidity 5% to 75% non-condensing water
Power 220V/50HZ Alternating current, 30A an air switch, voltage stability
